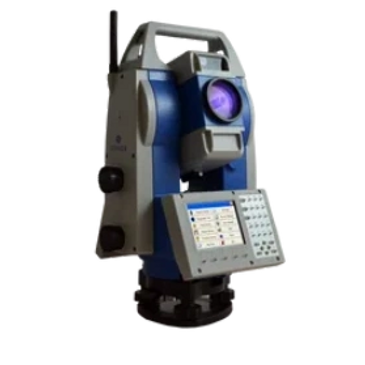

Stonex r80 motorized total station
STONEX R80 MOTORIZED TOTAL STATION
- Stonex R80 is a Motorized Total Station for classic jobs for survey and stakeout and perfect for high precision surveying areas, such as rail traffic monitoring, control of structures, bridges, dams and landslide areas.
- R80 adopts up to date automatic prism recognition and positioning technology and has a high accuracy of 0.5″-1″.
- R80 has a distance measurement accuracy of 1 mm + 1 ppm (Prism) and a 1.000 m long range reflectorless distance measurement.
ADVANTAGES OF THE SYSTEMS
- The OnePole Solution allows you to work simultaneously with TS and GPS
- TS and GPS (and diastimeter) can be simultaneously connected to the controller using Bluetooth
- Change the measurement mode from TS to GPS by one simple tap on the always accessible switch button
- Reduce prism search times through auto aiming to the current GPS position
- Easily setup your TS position by Station On Point and Free Station/Resection programs
- View on Google Maps your TS and GPS surveys
STONEX R80 MOTORIZED
TECHNICAL SHEET
Want more information about this product? Check out the manufacture technical sheets

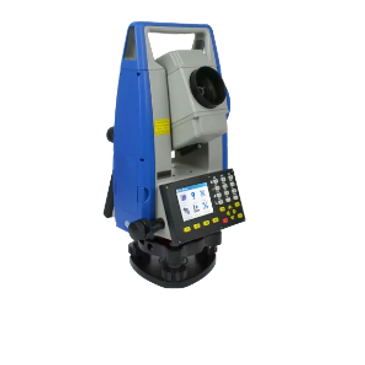

Stonex r35 total station
STONEX R35 TOTAL STATION
- Stonex R35/R35LR series is the most customizable Total Station of the market. Depending on the User needs, R35/R35LR comes with endless friction drives for continuous horizontal and vertical rotations, 2” accuracy and 600/1000 m reflectorless range.
- This advanced Total Station is fully customizable: each user can choose the software that best suits own needs.
- In addition the TFT 320×240 touch screen display on both sides gives the Surveyor a clear, colourful and fully graphical environment
- The high-precision class 3 EDM featuring millimeter accuracy even on long range distances
STONEX R35 TOTAL STATION
TECHNICAL SHEET
Want more information about this product? Check out the manufacture technical sheets
Stonex r25 total station
STONEX R25 TOTAL STATION
- High accuracy and long reflectorless range are the perfect combination that makes Stonex R25/R25LR the best friend of every professional surveyor.
- Cadastral, mapping, staking out, and up to high precision monitoring works: within the range of R25/R25LR Series
- R25/R25LR comes standard with integrated onboard field software, a complete suite of applications, and an external controllers can be linked to Stonex R25/R25LR, through the Bluetooth™ wireless connection: no limitation will stop your working process.
- Stonex R25/R25LR features endless friction drives for continuous horizontal and vertical rotations: no more knobs and clamps with limited movements but a more comfortable use of the station
STONEX R35 TOTAL STATION
TECHNICAL SHEET
Want more information about this product? Check out the manufacture technical sheets
Stonex r20 total station
STONEX R20 TOTAL STATION
- The R20 range is composed of 3 versions, the R20 1000 m model with 2″ angular accuracy, the R20 1000 m model with 1″ angular accuracy and the R20 600 m model with 2″ angular accuracy.
- The three models offer optimum performance up to 5000 m with prism and 1000 m or 600 m reflectorless. The entire R20 range is equipped with a high-performance, illuminated reticle telescope that provides the best quality of observation, whatever the environmental conditions.
- The programs on board of these models of total stations make them suitable for any work in construction, cadastral, mapping and staking, through a user-friendly interface. Thanks to the presence of Bluetooth connection, it is possible to connect an external controller, giving the possibility to use a customized field software.
STONEX R20 TOTAL STATION
TECHNICAL SHEET
Want more information about this product? Check out the manufacture technical sheets
